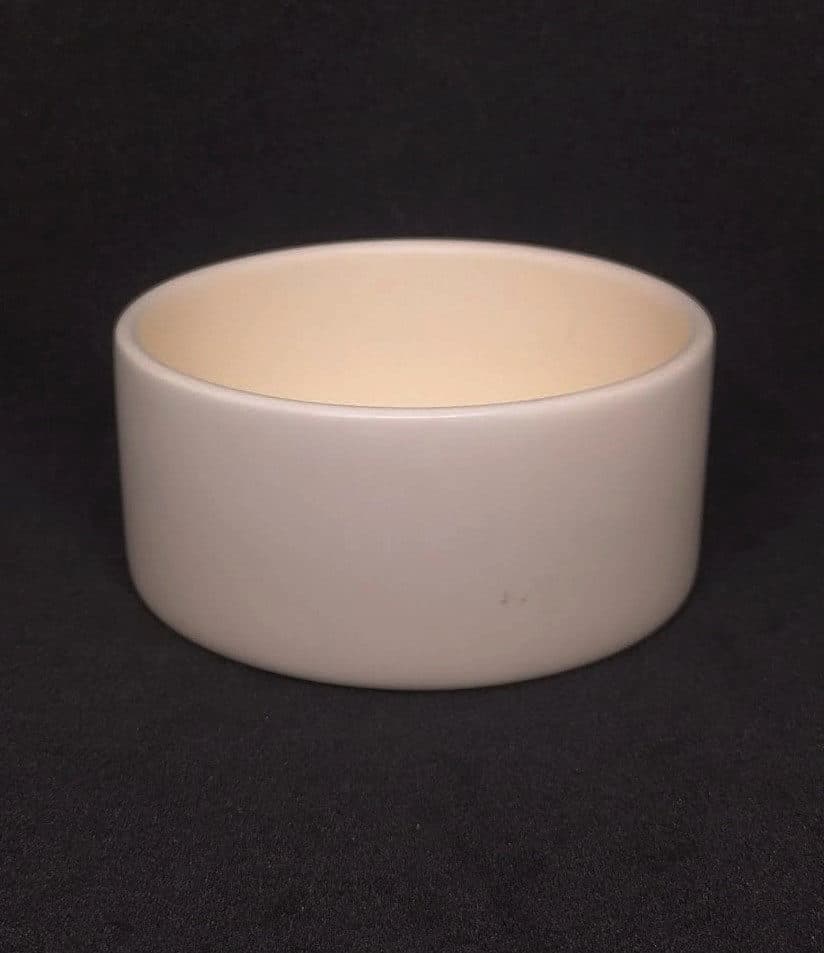

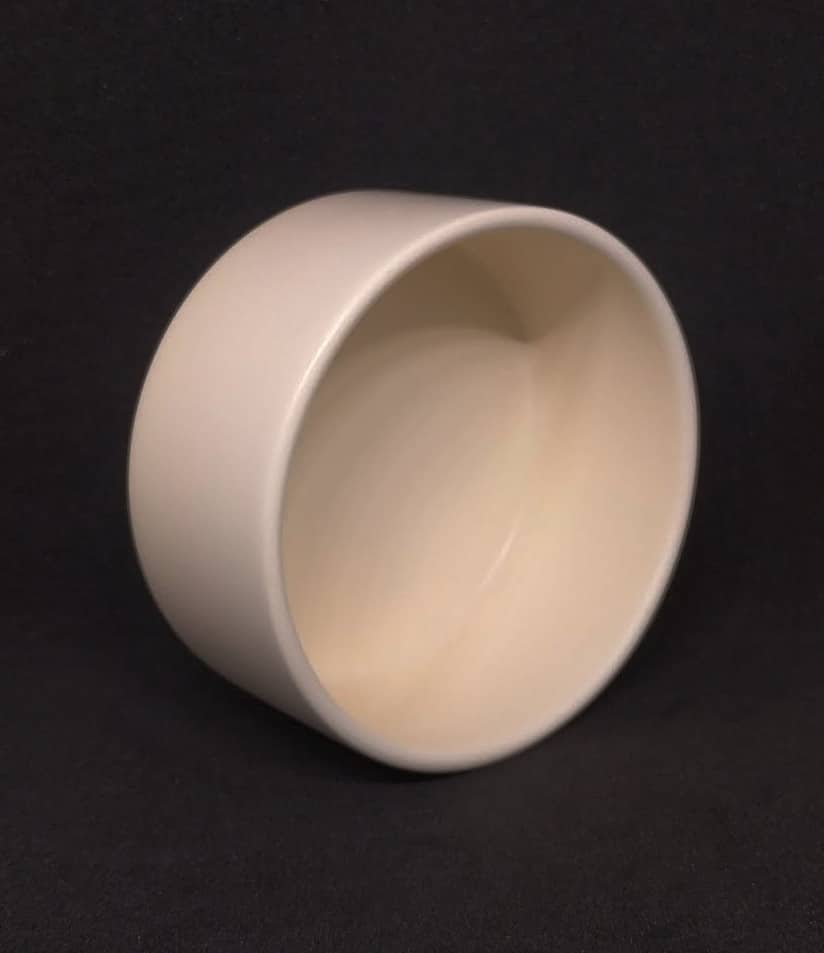

Alumina Dish

2403,250

Estimated Delivery :

7 To 10 Days ( For Products in Stock)

21 To 28 Days ( For Backorders )

Clear
SKU: N/A Categories: , Tag:
  • Description

    1 .Made from special grade of Alumina imported from ALCOA Germany.

    2. Labwares are made by slip casting and pressure casting. Purity of sintered Alumina to be above 99.7%. Sintered Grain Size is between 2-4 microns.

    3. Tolerance: /- 1mm for all dimensions up to 50 mm. /- 2mm for all dimensions above 50 mm.

    4 . Sintered Density: above 3.9 gm/cc, above 98% TD (3.96gm/cc)

    5 . Thermal Shock Behaviour: Temperature change rate should not exceed 150 °C/Hr

    6. Maximum Temperature of use without load: 1750°C

    7. Tested for Ultra High Vacuum Compatibility.

     DATASHEET (PDF – 256 KB)     BROCHURE (PDF – 16.5 MB)
