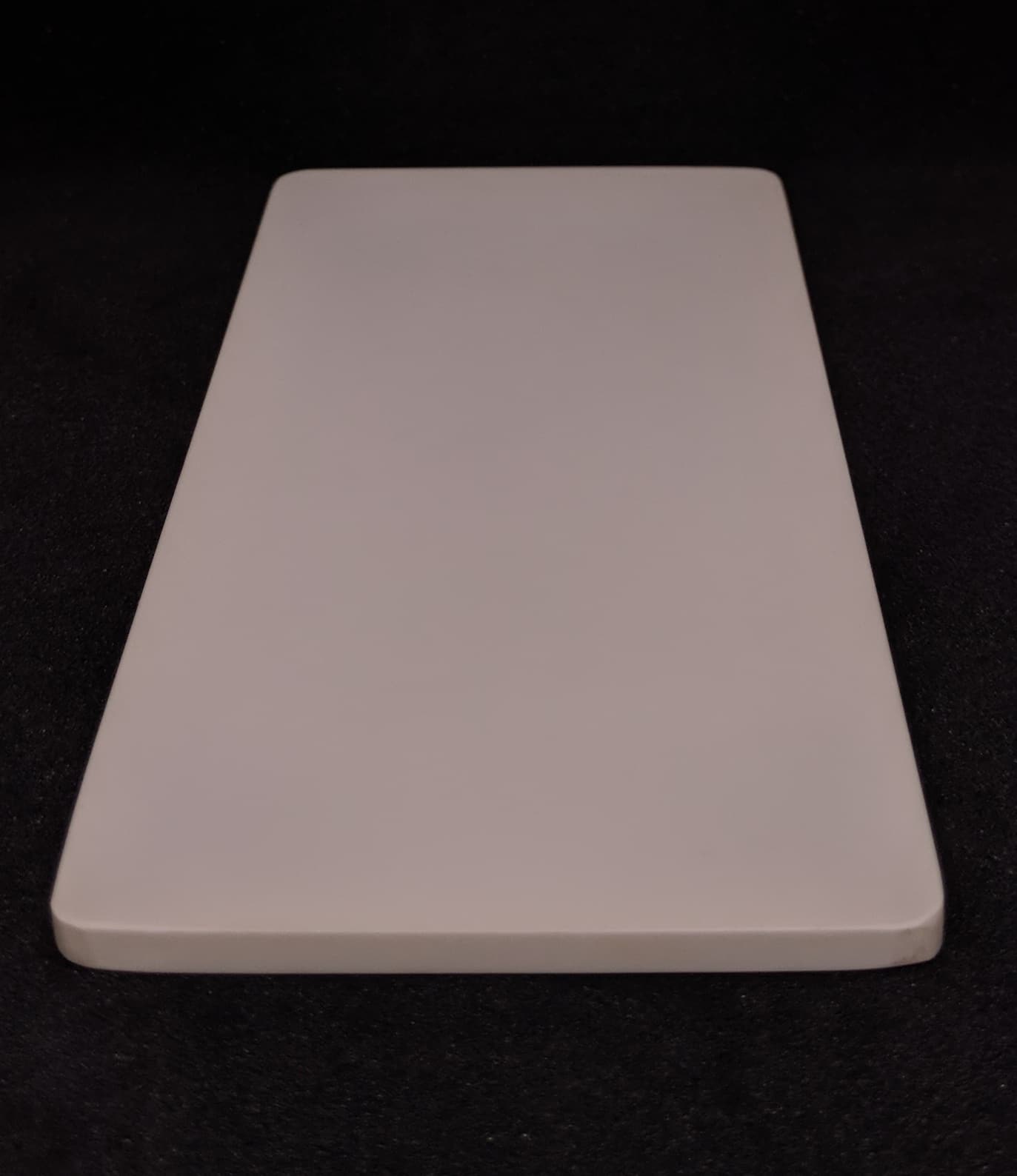

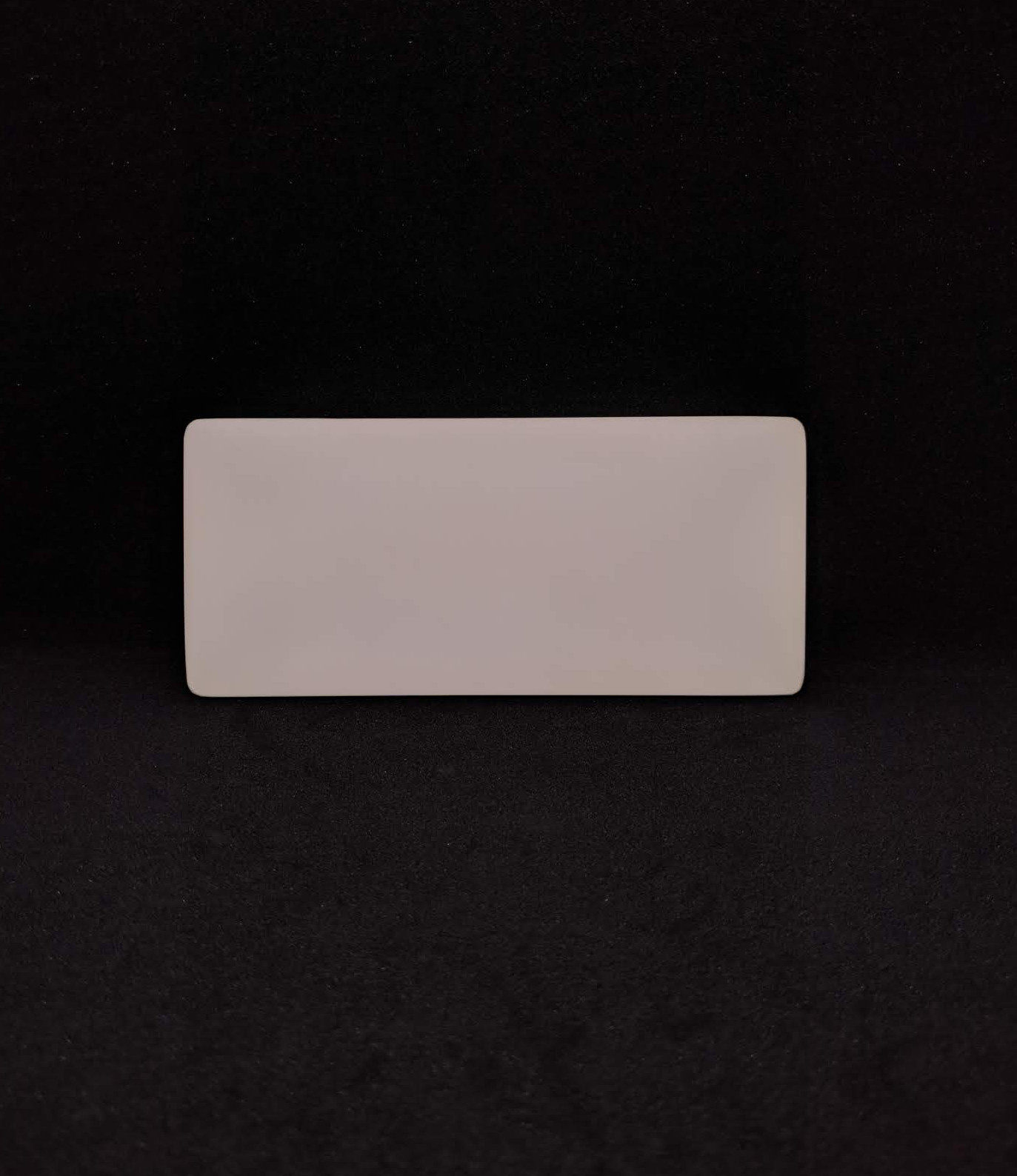

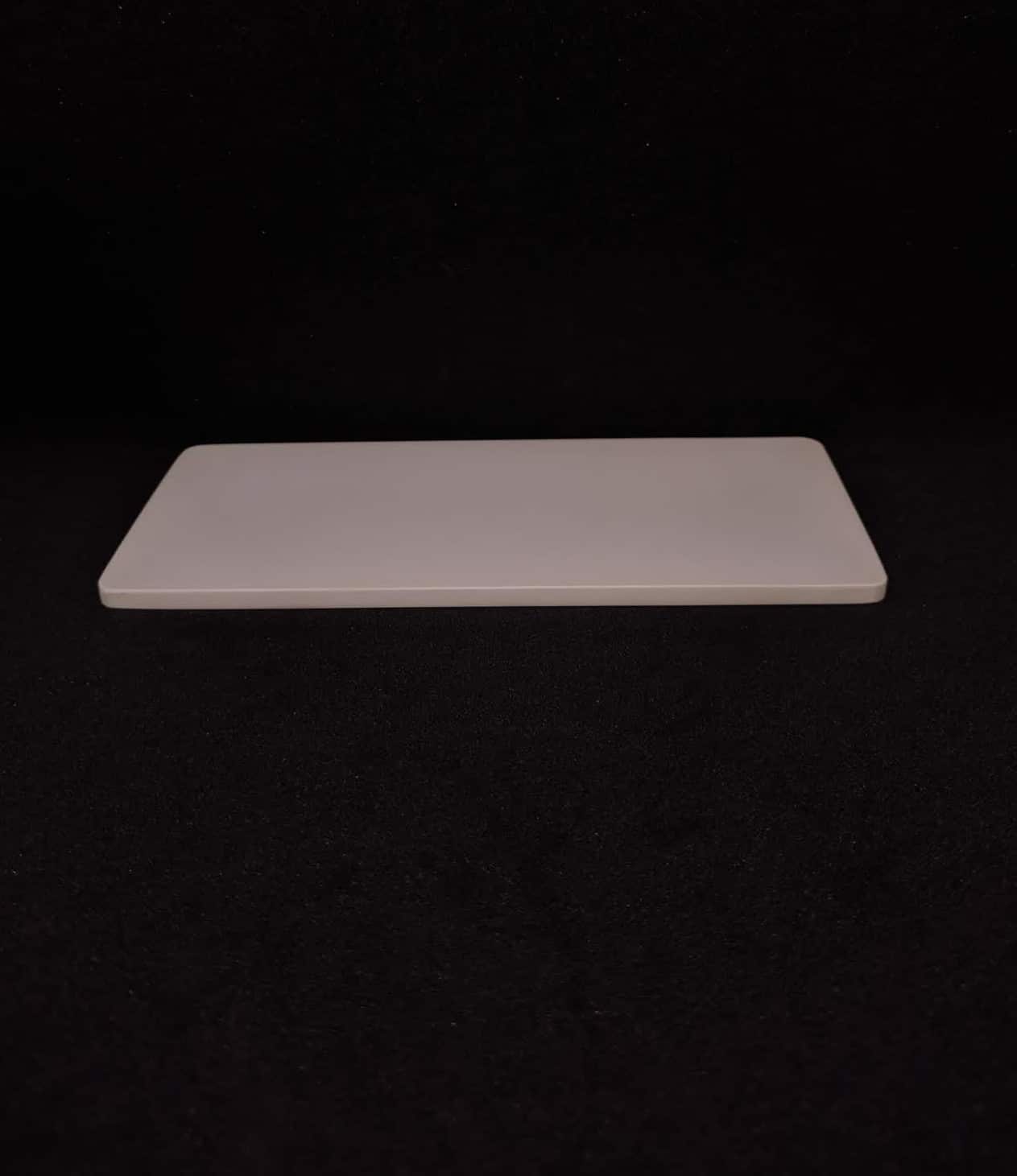

Alumina Plate

(1 customer review)

$ 1.77$ 40.72

Processing Time : 3 To 5 Business Days

For Backorders: 2 -3 weeks

Ships from Mumbai Warehouse
Country of Origin: India

  • 20 mm
  • 50 mm
  • 58 mm
  • 80 mm
  • 99 mm
  • 100 mm
  • 105 mm - A
  • 105 mm - B
  • 126 mm
  • 153 mm
  • 260 mm
Clear
SKU: N/A Category: Tag:
  • Description

    1 . Alumina Plate made from special grade of Alumina imported from ALCOA Germany.

    2. Labwares are made by slip casting and pressure casting. Purity of sintered Alumina to be above 99.7%. Sintered Grain Size is between 2-4 microns.

    3. Tolerance: /- 1mm for all dimensions up to 50 mm. /- 2mm for all dimensions above 50 mm.

    4 . Sintered Density: above 3.9 gm/cc, above 98% TD (3.96gm/cc)

    5 . Thermal Shock Behaviour: Temperature change rate should not exceed 150 °C/Hr

    6. Maximum Temperature of use without load: 1750°C

    7. Alumina Plate Tested for Ultra High Vacuum Compatibility.

    DATASHEET (PDF – 256 KB)    BROCHURE (PDF – 16.5 MB)
