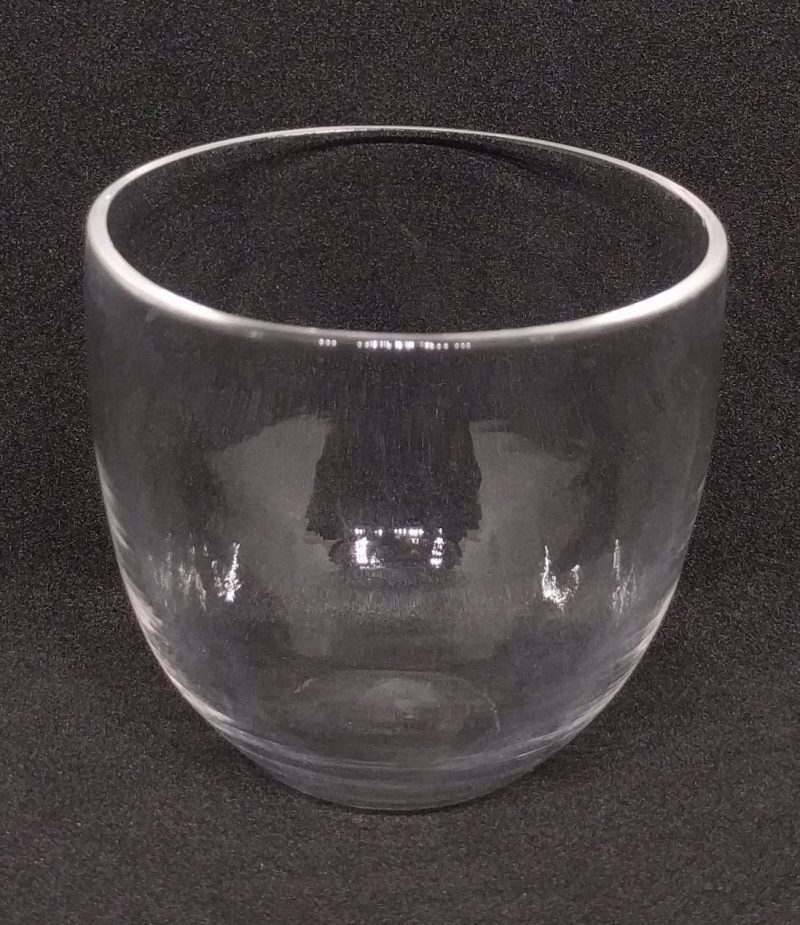

Quartz Crucible – Low Form


Processing Time : 3 To 5 Business Days

For Backorders: 2 -3 weeks

Ships from Mumbai Warehouse
Country of Origin: India

(2 customer reviews)

Free worldwide shipping on all orders over US $1000

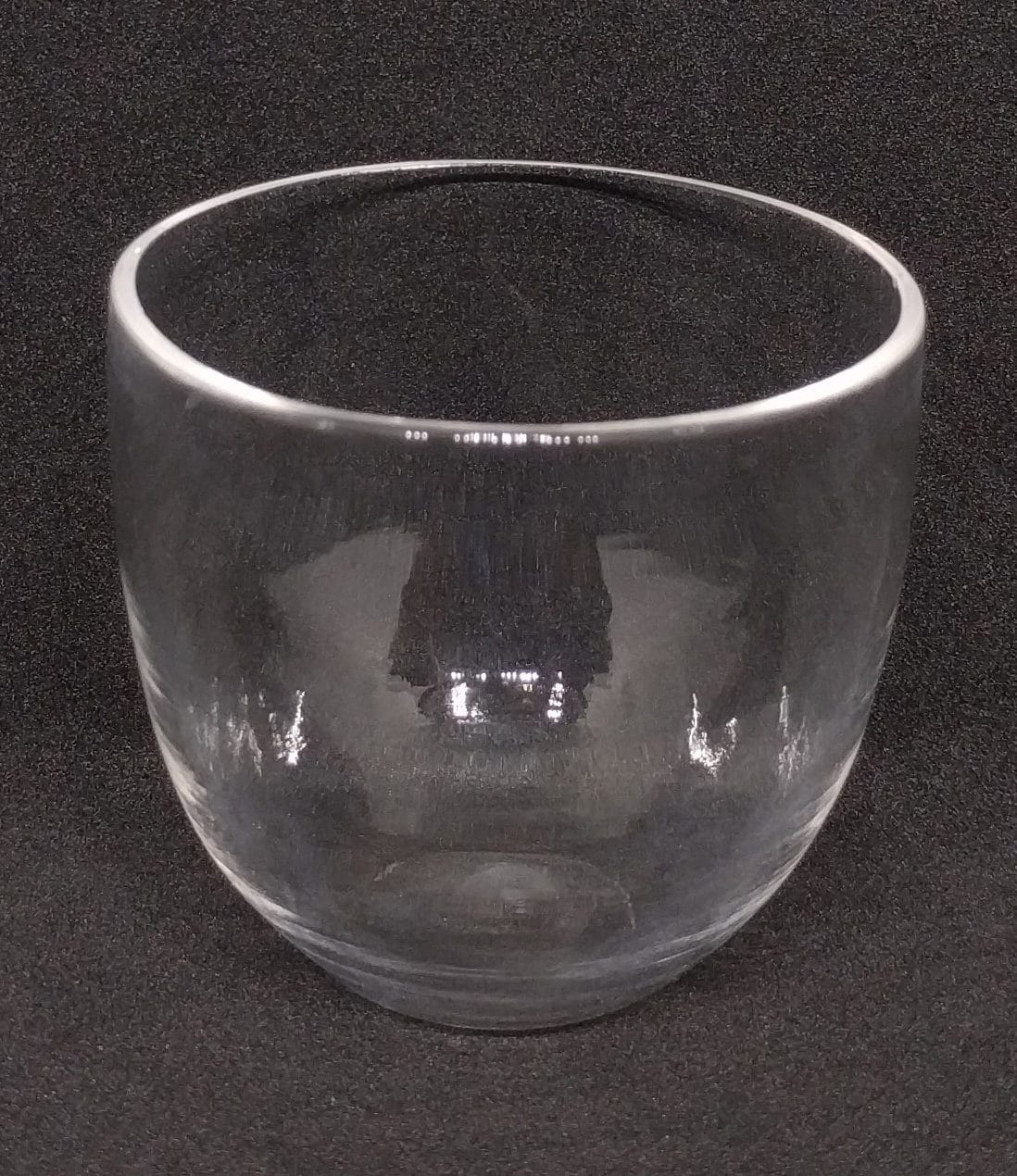

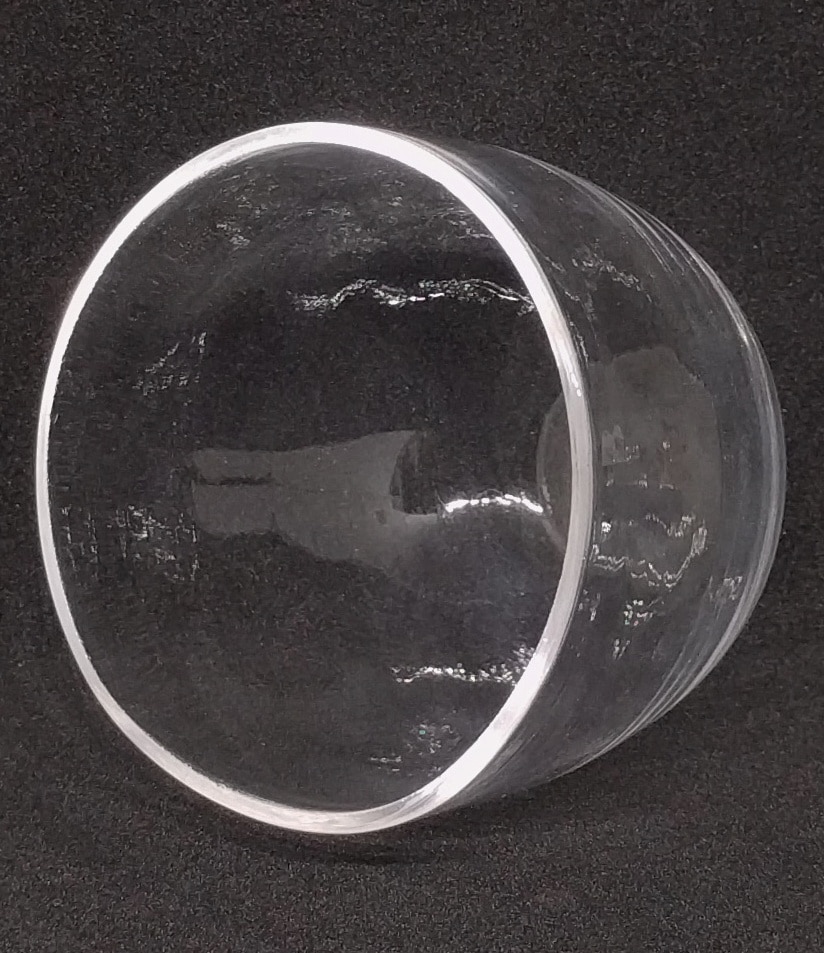

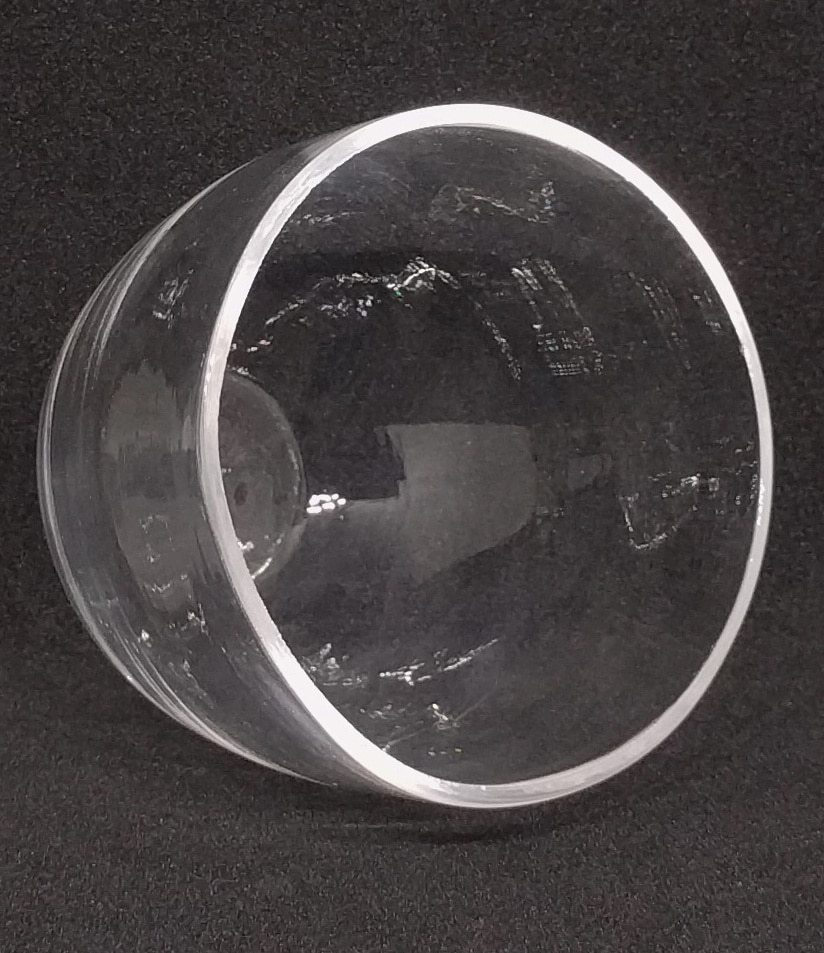

Low Form Quartz Crucible can be transparent or milky white. Transparent Quartz Low Form Crucible can withstand up to 1100 degree centigrade. It is most important to note that Quartz Low Form Crucible can withstand very high thermal shock (1000 degree centigrade to room temperature).

This transparent quartz is obtained through different types of raw materials because that includes natural or synthetic quartz sand. These are highly resistant to thermal shock due to the extremely low coefficient of thermal expansion because they have excellent electrical strength that offers stability under temperature variation.

Our range of Low Form Quartz Crucible is developed in our company by using high purity fused quartz as raw material and fabricating with advanced ceramic technology.

Thermal Properties of  Quartz Crucible

Thermal Conductivity 1.38(W/m°K)
Coefficient Of tThermal Expansion(0~1000 °C) 0.55(10 -6/ °C)
Normal Operating Temperature (Continuous Usage) ~1050 °C
Normal Operating Temperature (Non-Continuous Usage) ~1250 °C
Strain Point ~1075 °C
Annealing Point ~1180 °C
Hot Pressing Temperature ~1700 °C – 2100 °C
Devitrification Temperature  Starting at ~1000 ° C. high temperature accelerates Devitrification, especially with surface contaminants such as alkaline solution, salts and vapours.

Physical Properties of  Quartz Crucible

Units of Measure Value
Density gm/cc (lb/ft3) 2.2
Porosity %(%) 0
Tensile Strength 106 Pa 48.3
Young’s Modulus 106 Pa 71.7
Hardness kg/mm2 600
Thermal Conductivity W/m°K 1.38
A coefficient of Thermal Expansion 10-6/°C 0.55
Specific Heat J/Kg°K 740
Dielectric Strength Ac-kV/mm (volts/mil)  30
Dielectric Constant @1MHz 3.82
Index of refraction @ 587.6nm 1.4585

Quartz Low Form Crucible


2 reviews for Quartz Crucible – Low Form

  1. Annwesha Dutta

    The inner and outer walls of the crucibles were crystal clear without any spots or marks. The lid fits very well.I would recommend this to my colleagues.

  2. Mandeep Singh

    Crucibles were well packed by bubble wrap layers. Lid fits very well. It’s overall a great product.
