Hydraulic Pellet Press

(1 customer review)

$ 872.87

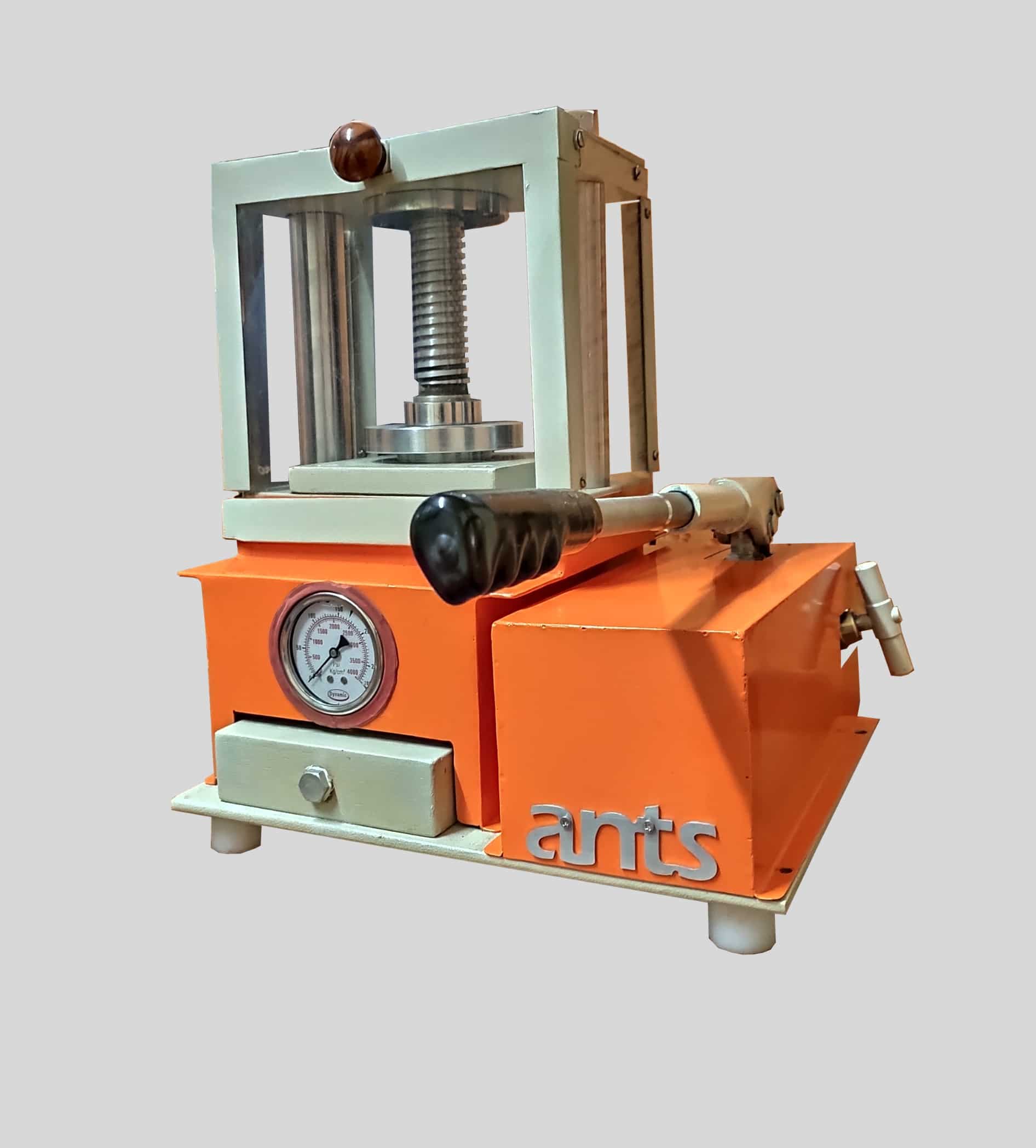

Manually operated Hydraulic Pellet Press , XRF pellet press for preparation of samples for XRF analysis or IR spectroscopy.

Compact , Simple operation via hand lever, Pressure up to 20 tons.

Delivery: 4-5 Weeks

Country of Origin: India

Available on backorder

  • Description

    This manually-operated Hydraulic Pellet Press, XRF Pellet Press is ideal for fast and easy preparation of both solid and highly permeable pellets of solid samples for X-ray fluorescence analysis or infrared spectroscopy.

    The pressure force is variable up to max. 200 kN (20 tons) .

    This manual laboratory press is ideal as an FTIR  Pellet Press, KBr Pellet  press and XRF Pellet press. Available in 20 ton load configurations.

    Includes:

    Hydraulic Oil Capacity

    1 Litre

    Tank Top Plate

    1 No

    Hand Pump

    1 No

    Master Relief Valve

    1 No

    Pressure gauge 2 1/2” Dia

    1 No

    Oil Indicator Level

    1 No

    Air Breather

    1 No

    Nylon Bush

    1 No

    Safety Acrylic Sheet

    4 No





    OVERALL DIMENSION APPROX:



    Top Platen size

    220 mm x 140 mm x 25 mm

    Bottom Platen Size

    350 mm x 280 mm  x 10 mm

    Pillar Rod Size

    35 mm x 120 mm Length (2 Nos.)

    Cylinder Bore Size

    100 mm

    Piston Rod Size

    60 mm

    Stroke Length

    25 mm

    Hydraulic Cylinder Type

    Single acting

    Daylight Height

    120 mm

    Pillar to Pillar Distance

    140 mm



    Download Brochure



    Also Visit,

    Pellet Press Die set (Product Page)
