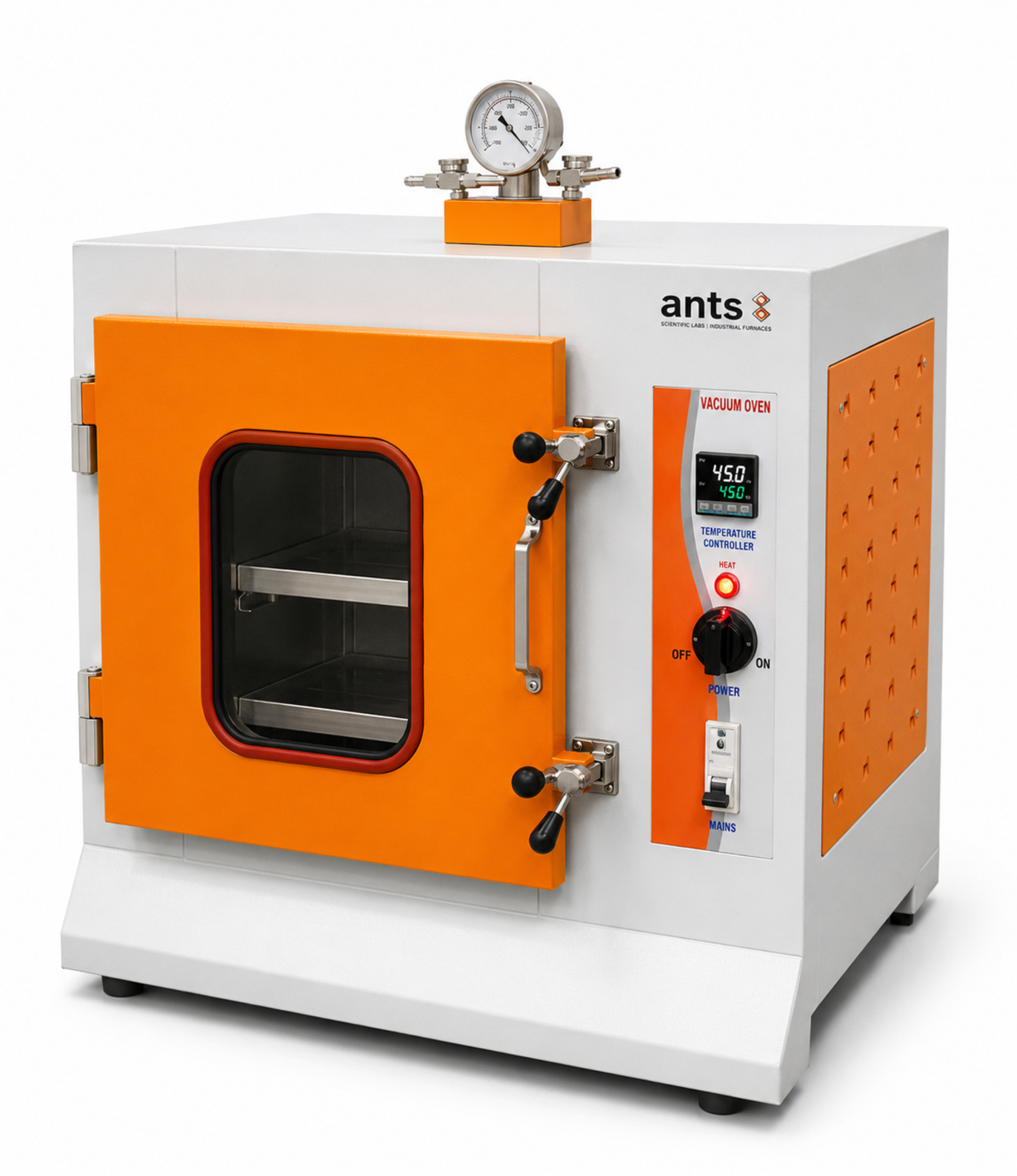

Vacuum Oven
Product Overview
The AntsLAB Vacuum Oven is engineered for controlled heating applications where moisture removal, oxidation prevention, and uniform temperature distribution are critical. Operating under vacuum conditions lowers the boiling point of volatile substances, enabling gentle drying and heat treatment of sensitive materials.
Built with robust double-wall construction and high-quality insulation, the oven provides stable operating conditions for laboratory and industrial environments.
Why Choose This Vacuum Oven?
Unlike conventional laboratory ovens, a vacuum oven minimizes oxidation and contamination during heating by removing air from the chamber. This makes it suitable for processing heat-sensitive, hygroscopic, and moisture-sensitive materials while maintaining excellent product quality.
Its microprocessor-based PID temperature controller, durable construction, and multiple chamber material options make it a dependable solution for demanding applications.
Working Principle
A vacuum pump evacuates air from the sealed chamber through the integrated vacuum valve, reducing internal pressure. Under reduced pressure, liquids evaporate at lower temperatures, allowing samples to dry or cure efficiently without exposure to atmospheric oxygen.
The PID temperature controller continuously regulates the heating elements to maintain accurate and uniform chamber temperatures throughout the process.
Performance & Reliability
The Vacuum Oven is designed to provide:
- Stable temperature control
- Uniform heat distribution
- Reliable vacuum sealing
- Long operational life
- Consistent laboratory performance
- Reduced oxidation during heating
Heavy-duty stainless steel trays, durable Nichrome heating elements, and PT100 temperature sensing contribute to dependable operation across a wide range of laboratory processes.
Build Quality
The oven features a robust double-wall insulated construction for improved thermal efficiency.
Available construction options include:
Standard Model
- Inner Chamber: SS304
- Outer Chamber: Powder-coated Mild Steel
GMP Model (SS304)
- Inner Chamber: SS304
- Outer Chamber: SS304
GMP Model (SS316)
- Inner Chamber: SS316
- Outer Chamber: SS304
Additional construction features include:
- 3 mm thick inner chamber
- 70 mm mineral/ceramic wool insulation
- Toughened glass viewing window
- Long-life silicone door gasket
- Heavy-duty SS304 trays
- Analog vacuum gauge
- Vacuum and release ball valves
Available Variants
Three construction options are available:
- SS304 Inner / Powder-Coated MS Outer
- SS304 Inner / SS304 Outer
- SS316 Inner / SS304 Outer
Capacities available:
- 8 L
- 27 L
- 42 L
- 64 L
- 90 L
- 125 L
- 216 L
Customization Options
Optional accessories include:
- Programmable temperature controller
- Ultra-high vacuum configuration
- Custom chamber sizes
- Gas purging system
- Higher operating temperature configuration
Please contact AntsLAB for customization requirements.
Industries Served
Suitable for laboratories and manufacturing facilities including:
- Pharmaceutical
- Chemical
- Electronics
- Research Laboratories
- Universities
- Material Testing
- Biotechnology
- Industrial R&D
- Aerospace Materials
- Advanced Ceramics
Key Features
- Double-wall insulated construction
- Available in SS304 and SS316 chamber configurations
- Microprocessor-based digital PID temperature controller
- PT100 three-wire temperature sensor
- Temperature range: Ambient +5°C to 300°C
- Temperature accuracy: ±1°C
- Toughened glass viewing window
- Long-life silicone vacuum gasket
- Analog vacuum gauge
- Vacuum level up to 760 mm Hg
- Heavy-duty SS304 trays
- Durable Nichrome heating elements
- Optional programmable controller
- Optional gas purging
- Optional ultra-high vacuum configuration
- Multiple chamber capacities available
Technical Specifications
| Specification | Details |
|---|---|
| Temperature Range | Ambient +5°C to 300°C |
| Temperature Controller | Microprocessor PID Controller with LED Display |
| Control Accuracy | ±1°C |
| Temperature Sensor | PT100 (3-wire) |
| Temperature Uniformity | ±1°C @100°C, ±1.5°C @150°C, ±2°C @200°C, ±2°C @250°C, ±3°C @300°C |
| Heating Element | Nichrome |
| Vacuum Level | 0–30″ / 0–760 mm Hg |
| Vacuum Gauge | Analog |
| Chamber Thickness | 3 mm |
| Insulation | 70 mm Mineral/Ceramic Wool |
| Power Supply | 230 V AC, Single Phase |
| Viewing Window | Toughened Glass |
| Door Seal | Molded Silicone Gasket |
| Trays | Heavy Duty SS304 |
| Vacuum Pump | Optional |
| Vacuum Pipe | Optional Silicone Pipe (1 m) |
| Optional Accessories | Programmable Controller, Ultra High Vacuum, Gas Purging, Higher Temperature, Custom Sizes |
Available Models
| Model | Capacity | Internal Size (mm) | Trays |
|---|---|---|---|
| AL-RVO-8 | 8 L | 200 × 200 × 200 | 2 |
| AL-RVO-27 | 27 L | 300 × 300 × 300 | 2 |
| AL-RVO-42 | 42 L | 350 × 350 × 350 | 3 |
| AL-RVO-64 | 64 L | 400 × 400 × 400 | 3 |
| AL-RVO-90 | 90 L | 450 × 450 × 450 | 3 |
| AL-RVO-125 | 125 L | 500 × 500 × 500 | 3 |
| AL-RVO-216 | 216 L | 600 × 600 × 600 | 4 |
Applications
Vacuum ovens are commonly used for:
- Laboratory drying
- Moisture removal
- Vacuum curing
- Degassing materials
- Heat treatment
- Drying hygroscopic materials
- Sample preparation
- Solvent removal
- Electronic component drying
- Ceramic material processing
- Polymer curing
- Research and development
Industries Served
- Pharmaceutical
- Chemical Processing
- Biotechnology
- Universities
- Academic Research
- Electronics Manufacturing
- Semiconductor
- Aerospace
- Advanced Ceramics
- Material Science Laboratories
- Food Research
- Industrial R&D
Why Buy from AntsLAB
- Extensive expertise in laboratory and thermal processing equipment
- Reliable products designed for industrial and research applications
- Multiple chamber material options to suit different process requirements
- Guidance in selecting the right equipment for your application
- Customization options for specialized requirements
- Technical support throughout the product lifecycle
- Focus on quality manufacturing and dependable performance
- Trusted partner for laboratories and industrial customers
A vacuum oven is used for drying, curing, degassing, and heating materials under reduced pressure.
Ambient +5°C to 300°C.
SS304 and SS316 depending on the selected model.
No. Vacuum pumps are available as optional accessories.
Yes. Custom sizes and additional options are available.
A microprocessor-based PID controller with LED display.
Yes, all models include a toughened glass viewing window.
Pharmaceuticals, electronics, research laboratories, chemicals, advanced materials, and industrial manufacturing.
Up to 760 mm Hg vacuum.
Yes. The brochure specifies a user manual with calibration certificates.
Looking for the Right Vacuum Oven for Your Application?
Whether you need a compact laboratory model or a larger industrial vacuum oven, our team can help you select the most suitable configuration based on your process requirements.
Request a Quote today or speak with an application expert for technical guidance, customization options, and product recommendations.
